PRO 300A TIG Turret Rotary Welding Positioner

When welders need the perfect weld on round parts, this is the machine they reach for. The MWP66 is a compact, truly portable rotary welding positioner and turntable engineered for reliability, precision, and unmatched value.

Built to handle nearly every process — MIG, TIG, Laser, and Stick — it delivers smooth, controlled rotation that elevates weld quality, consistency, and speed.

Designed by welders, for welders, the MWP66 combines shop-ready durability with a lightweight, compact design that sets up in minutes and keeps workflows moving. Its patent-pending design, proudly made in the USA, features a maintenance-free system and an impressive 500A of clean conductivity—making it equally at home on a small bench or in the most demanding production environments.

The go-to machine for perfect welds on round parts. The MWP66 delivers smooth, precise rotation across MIG, TIG, Laser, and Stick processes in a compact, portable package. Proudly made in the USA, it’s built tough with a maintenance-free design and 500A conductivity for both shop benches and demanding production.

Features:

· Smooth, Stepless Rotation for ultra-precise and consistent weld beads.

· Variable Speed Range carefully dialed in for precision TIG welding travel speeds on diameters up to 6” OD.

· Quality Materials such as stainless steel, aluminum, and powdercoated steel all sourced within the USA.

· Durable Construction – Patent-pending design built in the USA.

· Head Positions in 22.5° degree increments from horizontal to vertical.

· Assemble in Minutes – Fast, light assembly required.

· 1 Year Manufacturer Warranty

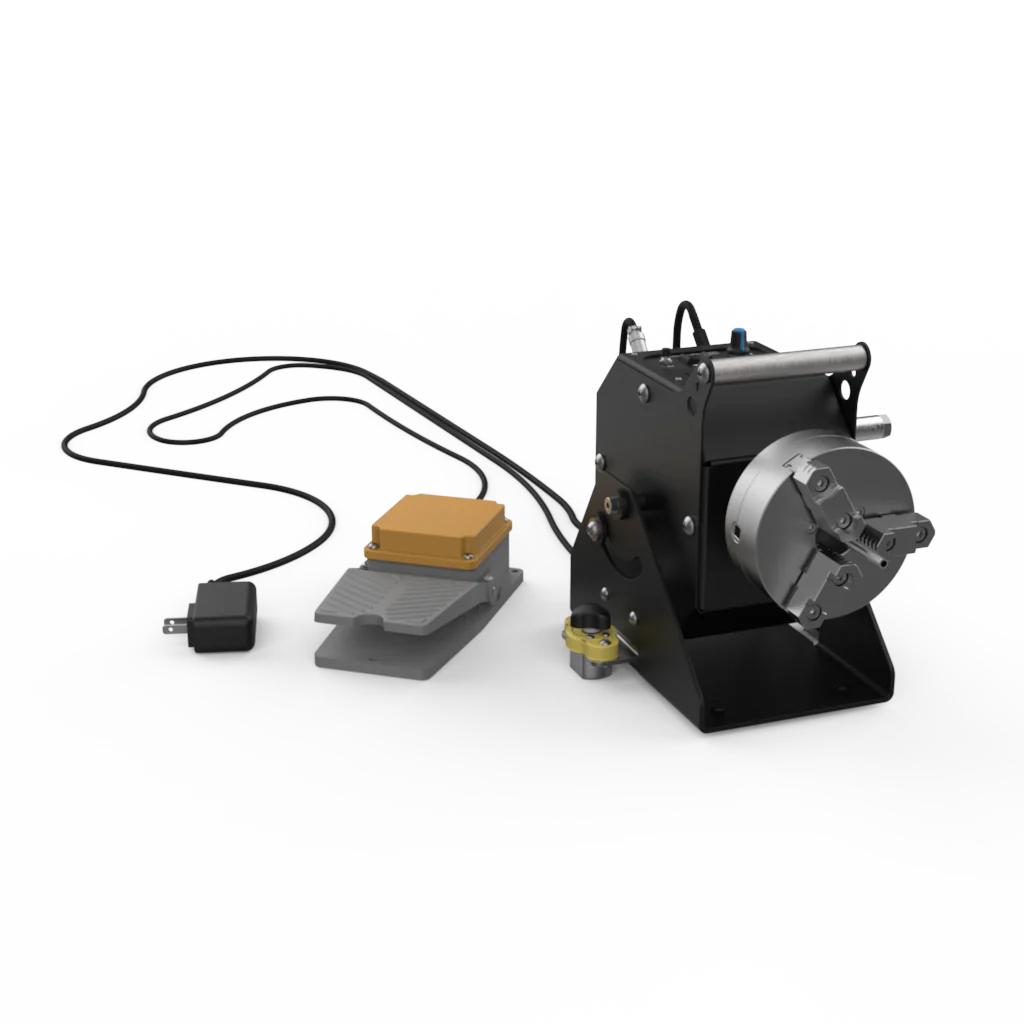

Included Parts:

· TIG Turret MWP66 Rotary Weld Positioner

· Heavy-Duty Aluminum Foot Switch

· U.S. 120VAC to 12VDC Power Adapter

· 4” 3-Jaw Lathe Chuck

Specifications:

Shaft Speed	.3 – 3.3RPM
Load Capacity	20lbs. Horizontal, 40lbs. Vertical
Weld Current Capacity	300A Continuous, 500A Peak
Internal Jaw Jamming Range	1.18”-3.54” / 30-90mm
Internal Jaw Clamping Range	.08”-1.18” / 2-30mm
External Jaw Clamping Range	1.18”-3.15” / 30-80mm
Power Source	12VDC, 2A – US 120VAC Adapter Incl.
Shipping Weight	20lbs.
Machine Size (Horizontal)	8.12” L x 5.43” W x 9.18” H

Optional Addons:

· Through-Purge Kit – Easily flow shielding gas through your workpiece for clean, sanitary welds inside and out. Less fuss, less aluminum foil.

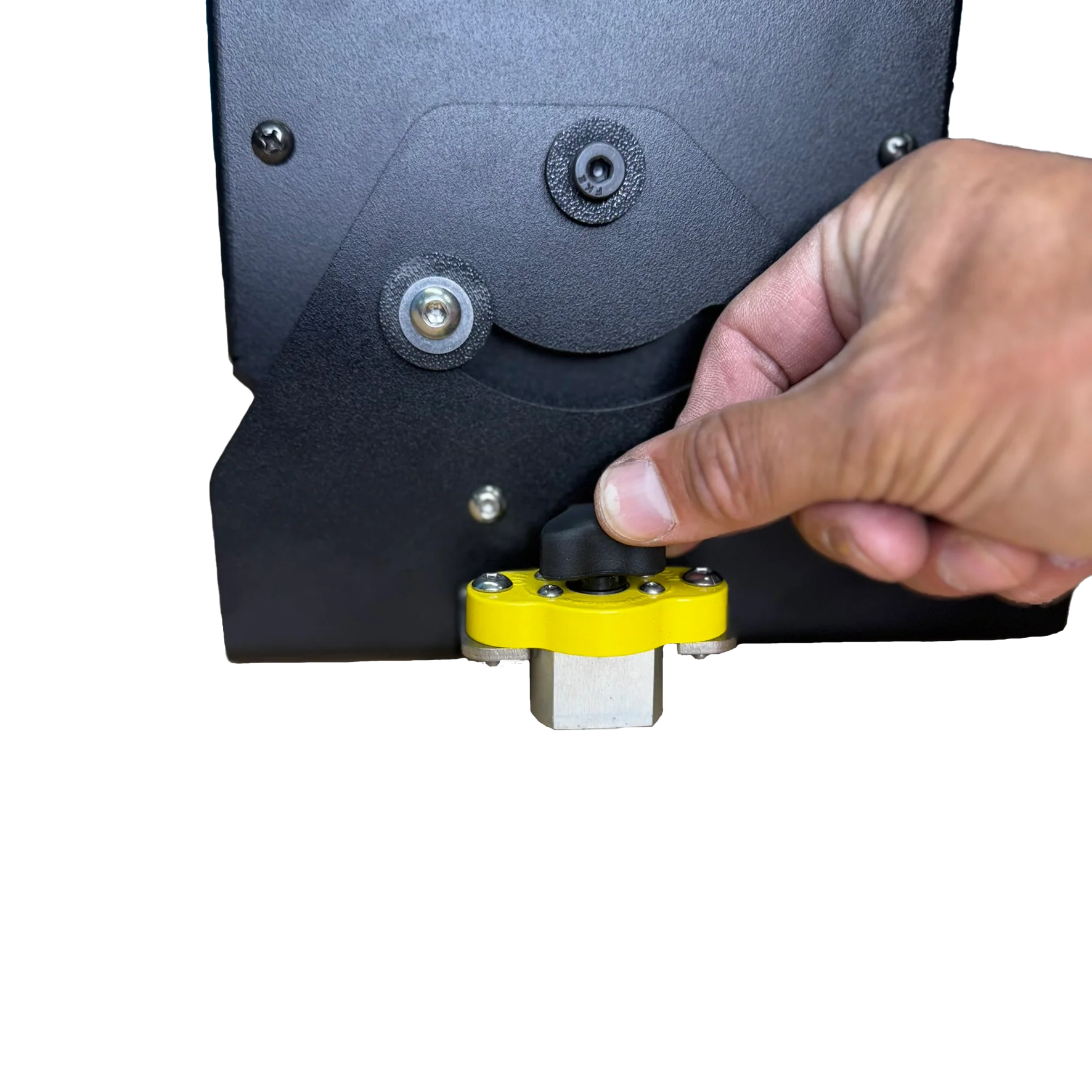

· Magnetic Base Kit – Powerful switching 95lb. magnets improve stability and increase horizontal loading capacity.
