SWAG JD2 Notch Master Reach Around
A simple bolt on upgrade to your JD² Notchmaster that instantly adds much needed versatility to your tubing notcher.
Allows you to easily notch from the back side of the tube and allows for a wider ranger of movement in every direction. In stock form, the Notchmaster can notch tubing from -5 degrees to 55 degrees, with the SWAG Reach around arm you can notch from -25 degrees up to 270 degrees.
The Swag Reach Around arm helps you while notching on a complex bend as you are now able to push your tubing against a the rigid fixed mount tube notcher frame, instead of pushing the tubing against the adjustable and narrow tube notcher clamp.

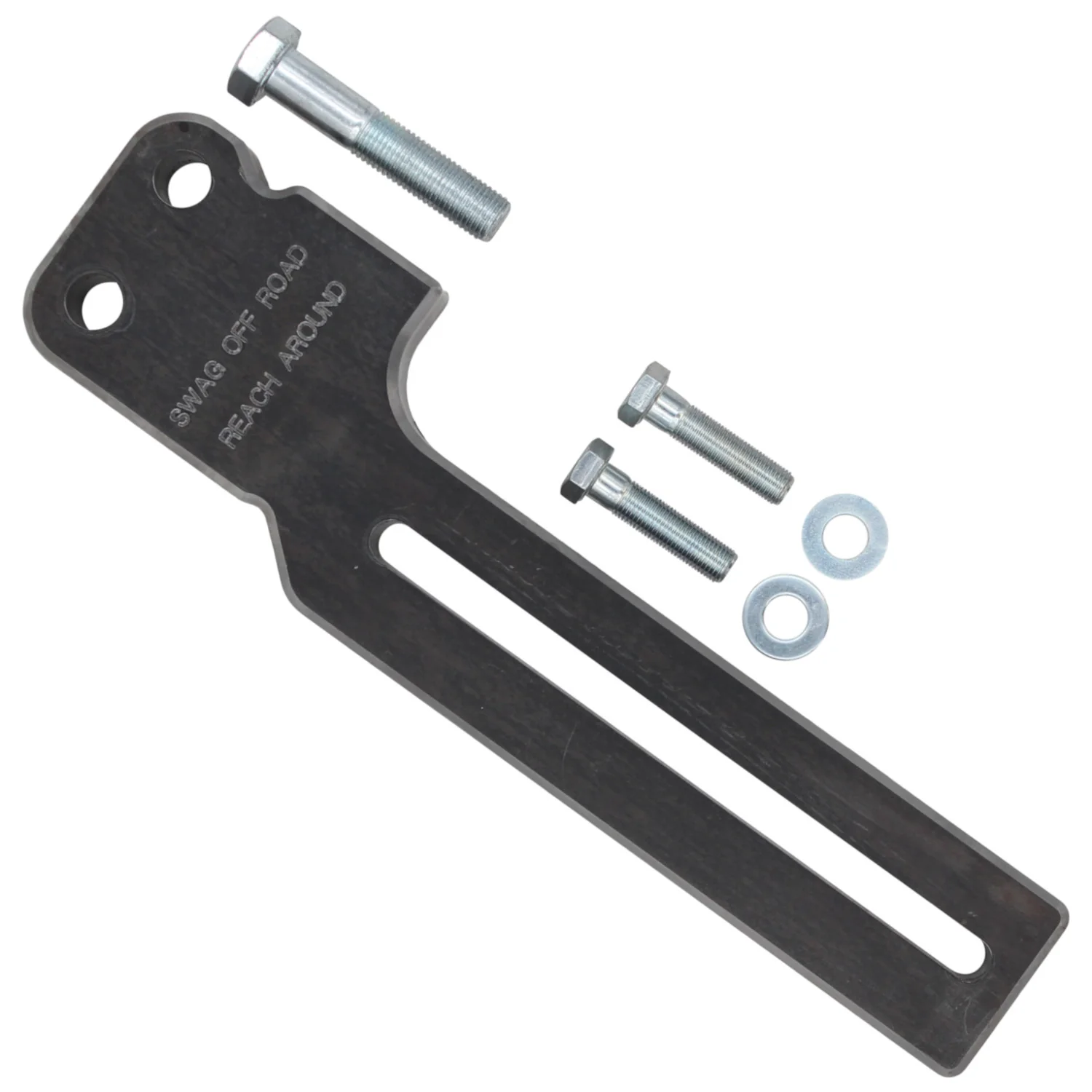

Installation requires you to drill a 1/2" hole in the notcher base plate, directions as well as all related fasteners are provided with the kit.
If you wish to make this arm fit on the Woodward Fab tube notcher WFN6 or the Eastwood Fab tube notcher, you will need to perform the necessary modification. To make the Reach Around Arm work for these two notchers, the hole closest to the V groove (inside hole) needs to be drilled out to 5/8 and the 2 bolts need to be 3/8"x16 not 3/8"x24 that is provided with the hardware kit.

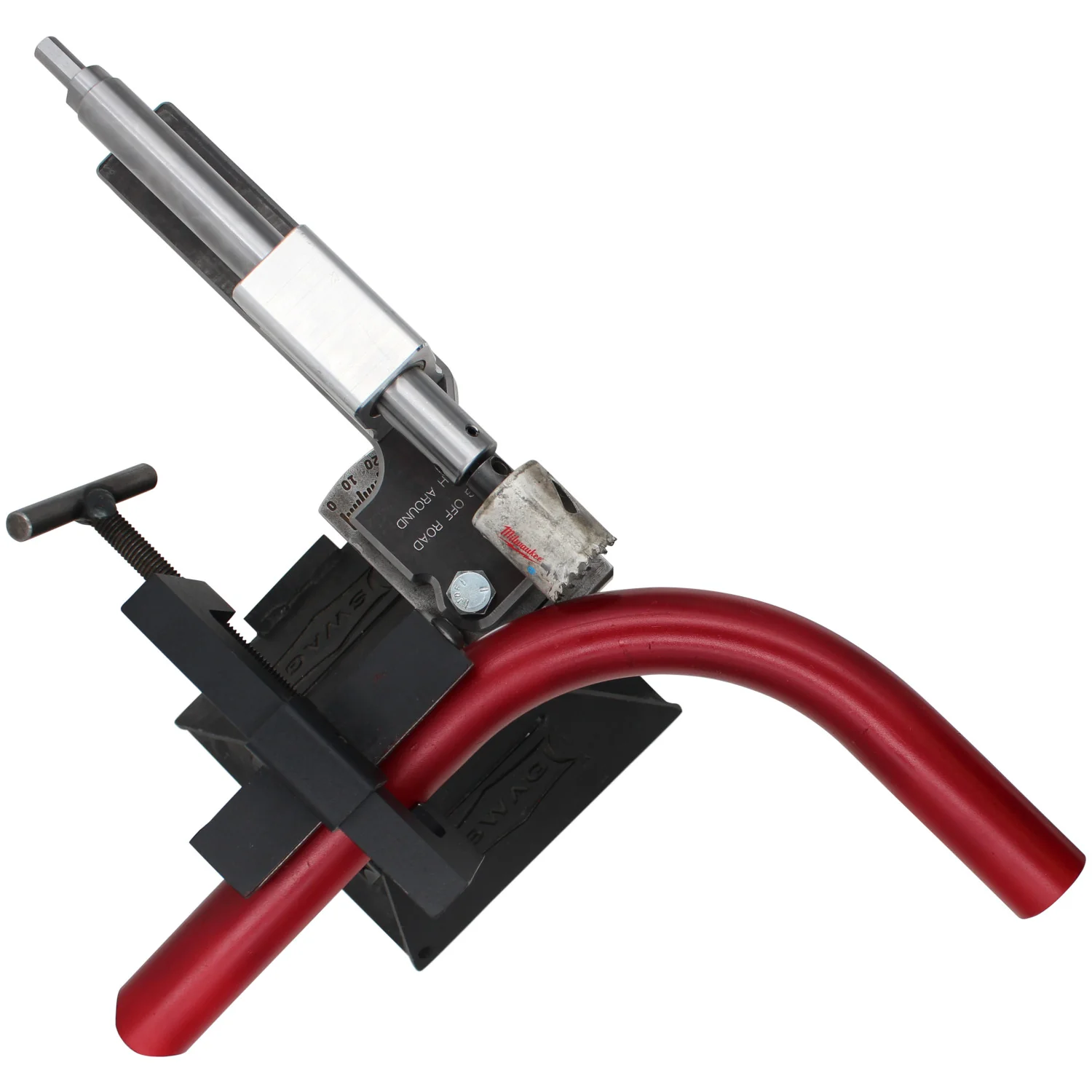

Please Note: We do not sell the tubing notcher, it is shown for reference only.
Original: $84.95
-65%$84.95
$29.73Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
A simple bolt on upgrade to your JD² Notchmaster that instantly adds much needed versatility to your tubing notcher.
Allows you to easily notch from the back side of the tube and allows for a wider ranger of movement in every direction. In stock form, the Notchmaster can notch tubing from -5 degrees to 55 degrees, with the SWAG Reach around arm you can notch from -25 degrees up to 270 degrees.
The Swag Reach Around arm helps you while notching on a complex bend as you are now able to push your tubing against a the rigid fixed mount tube notcher frame, instead of pushing the tubing against the adjustable and narrow tube notcher clamp.
Installation requires you to drill a 1/2" hole in the notcher base plate, directions as well as all related fasteners are provided with the kit.
If you wish to make this arm fit on the Woodward Fab tube notcher WFN6 or the Eastwood Fab tube notcher, you will need to perform the necessary modification. To make the Reach Around Arm work for these two notchers, the hole closest to the V groove (inside hole) needs to be drilled out to 5/8 and the 2 bolts need to be 3/8"x16 not 3/8"x24 that is provided with the hardware kit.
Please Note: We do not sell the tubing notcher, it is shown for reference only.
